TASKLED - Smart LED drivers

No Longer Available

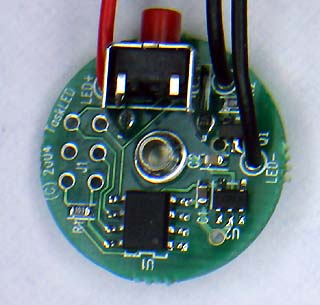

D2DIM Driver:

• PWM dimming driver (Direct Drive). PWM frequency ~800Hz.
• Maximum input voltage 16V, nominal minimum input voltage 2.7V.
• Nominal 2.7V cutoff for protecting single li-ion cells from overdischarge.
• Maximum drive current 3.4A (70C ambient) or 4.2A (25C ambient).
• uController based design.
• Momentary action switch controls User Interface (UI).
• Choice of 2 UI's (user selectable).
• Draws ~50uA in sleep mode.
• Board is 0.840" in diameter.
