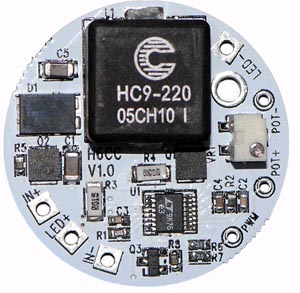

H6CC Driver:

• Buck converter, typical configurations 80 to 95% efficient (see tech section).
• Adjustable Constant current regulator. 6.7A maximum current ability.
• Can drive up to 5 series connected SST50 or SSR50 or similar high power LEDs (Vf < 4V each)
• Operates from 8V to 25V (***See technical section for clarification of the lower voltage range). 5 li-ion cells MAX.
• Maximum output voltage same as Vin (input voltage).
• Protected against reverse polarity connection (low voltage drop FET) and output short circuit.
• Regulator requires about 1V over the total LED Vf to maintain regulation, current drops when out of regulation.
• Board is 1.20" in diameter. Maximum thickness (board and inductor height) is 8.9mm or 0.35".
• Single sided components. 1 screw hole to clamp the driver to a heatsink using supplied thermal pad material.
• PWM input that is compatible with d2Flex V3.0
